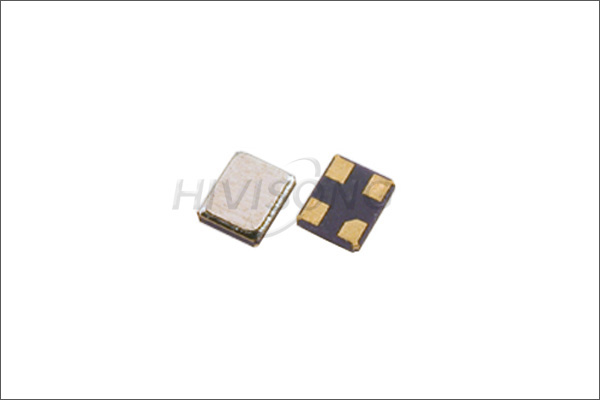

2520贴片晶振
晶体谐振器表面贴装金属外壳，高可靠性焊缝焊接包装，频率范围宽
适用于设计空间有限的智能手机，最小化的天线模块设备，智能锁等其它消费类产品。
详细参数：
Item
Standard specifications
Frequency Range F0
12to 15.999MHz
16 to 19.999MHz
20 to 25.999MHz
26 to 62.500MHz
Mode of Vibration
Fundamental
Load Capacitance CL
8 to 16pF
Frequency Tolerance △F/ F0
±10ppm, ±15ppm,±30ppm(At 25℃)
Equivalent Series Resistance ESR
120 Ωmax.
100Ω max.
80Ω max.
50Ω max.
Temperature Stability TC
±10ppm,±15ppm,±30ppm(Refer to 25℃)
Operating Temperature Range TOPR
-20~+70℃ -40~+85℃ Option
Storage Temperature Range TSTG
-55~+125℃
Shunt Capacitance C0
3pF max.
Insulator Resistance IR
500MΩ min. (At 100V)
Drive Level DL
50µW (100µW max.)
Aging Fa
±2ppm max. (At 25℃, First year)
Packing Unit
3000pcs/reel
