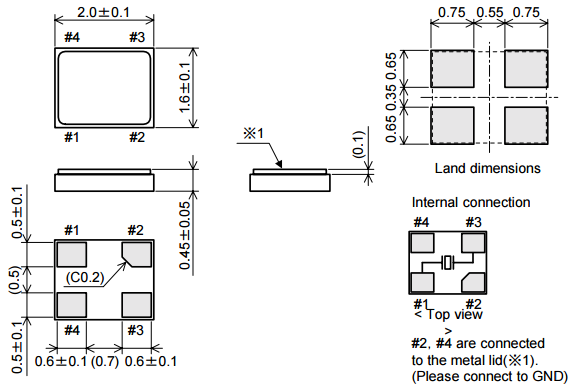

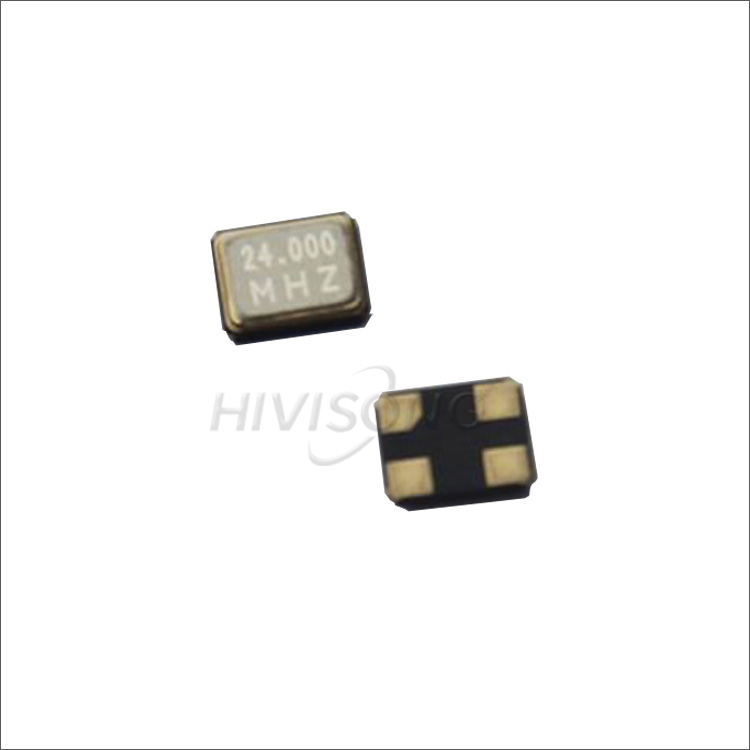

2016贴片晶振尺寸2.0*1.6小型化石英晶振封装，适用于设计空间有限的智能手机，最小化的天线模块设备，智能锁等其它消费类产品。此产品特点：金属外壳，高可性焊缝焊接包装，超轻，超小型频率范围宽。
|
Item |
Standard specifications |
|||
|
Frequency Range F0 |
16to 18.999MHz |
19 to 24.999MHz |
25 to 29.999MHz |
30 to 62.500MHz |
|
Mode of Vibration |
Fundamental |
|||
|
Load Capacitance CL |
8 to 16pF |
|||
|
Frequency Tolerance △F/ F0 |
±10ppm, ±15ppm,±30ppm(At 25℃) |
|||
|
Equivalent Series Resistance ESR |
200 Ωmax. |
100Ω max. |
80Ω max. |
60Ω max. |
|
Temperature Stability TC |
±10ppm,±15ppm,±30ppm(Refer to 25℃) |
|||
|
Operating Temperature Range TOPR |
-20~+70℃ -40~+85℃ Option |
|||
|
Storage Temperature Range TSTG |
-55~+125℃ |
|||
|
Shunt Capacitance C0 |
3pF max. |
|||
|
Insulator Resistance IR |
500MΩ min. (At 100V) |
|||
|
Drive Level DL |
50µW (100µW max.) |
|||
|
Aging Fa |
±2ppm max. (At 25℃, First year) |
|||
|
Packing Unit |
3000pcs/reel |
|||
